Descrizione del prodotto

Hydrogen Generator / Water Electrolyzer System

Advanced Green Hydrogen Production Solution

Our Hydrogen Generator (Water Electrolyzer) is a state-of-the-art system designed for on-site, high-purity hydrogen production using water electrolysis technology. Powered by electricity—ideally from renewable sources—this system enables clean, sustainable, and cost-effective green hydrogen generation with zero emissions.

Green hydrogen is produced by splitting water (H₂O) into hydrogen (H₂) and oxygen (O₂) through electrolysis, making it a key technology for decarbonization and future energy systems.

Working Principle

The system operates based on electrolysis: Water (H₂O) + Electricity → Hydrogen (H₂) + Oxygen (O₂)

Hydrogen is collected, purified, and stored
Oxygen can be vented or utilized as a by-product
When powered by solar or wind energy, the process produces 100% green hydrogen

Key Features

High Hydrogen Purity – Up to 99.999% purity with optional purification systems
Energy Efficient Operation – Low power consumption (~4.2-5.2 kWh/Nm³ of hydrogen)
Fully Automatic Control System – PLC-based automation with remote monitoring and smart diagnostics
Modular & Scalable Design – Capacity range from small-scale units to large industrial plants
High Pressure Output – Hydrogen delivery up to 30 bar or higher depending on configuration
Long Service Life – Durable components with operational life up to 10-15 years
Eco-Friendly & Zero Emissions – Produces only hydrogen and oxygen—no pollution or carbon emissions

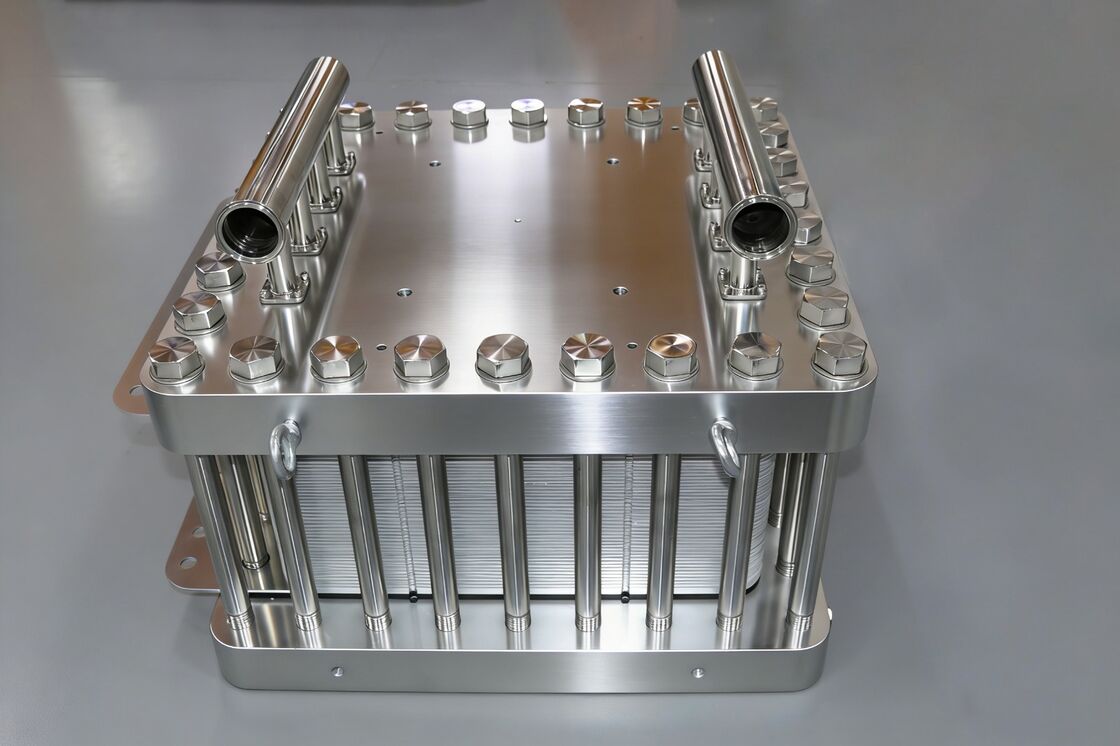

PEM Electrolyzer Hydrogen Generator

High-Efficiency, Dynamic Green Hydrogen Production

Our PEM (Proton Exchange Membrane) Electrolyzer is an advanced hydrogen production system designed for high purity, rapid response, and integration with renewable energy sources. It is ideal for projects requiring flexibility, compact design, and real-time hydrogen generation.

This system is especially suitable for solar and wind-powered hydrogen production, enabling true green hydrogen solutions.

Key Features

Ultra-High Hydrogen Purity: Up to 99.999%
Fast Start & Dynamic Operation: Instant response to fluctuating power
Compact & Space-Saving Design
High Current Density & Efficiency
Low Maintenance Requirements
Seamless Renewable Energy Integration

Technical Specifications

Parameter	Specification
Capacity Range	0.5 - 500 Nm³/hr
Hydrogen Purity	≥ 99.999%
Output Pressure	Up to 30-40 bar
Power Consumption	4.5 - 5.5 kWh/Nm³
Cooling Method	Water / Air Cooling
Operation Mode	Dynamic / Intermittent

Applications

Hydrogen Refueling Stations (HRS)
Renewable Energy Storage (Power-to-Hydrogen)
Fuel Cell Systems (mobility & stationary)
Electronics & Semiconductor Industry
Laboratory & High-Purity Applications

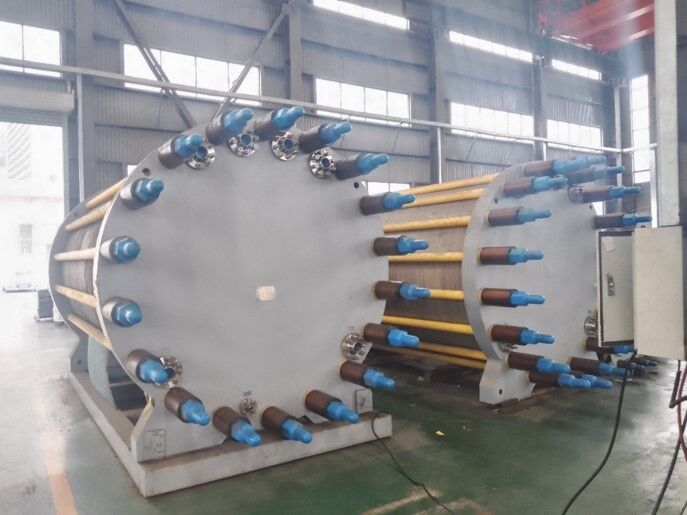

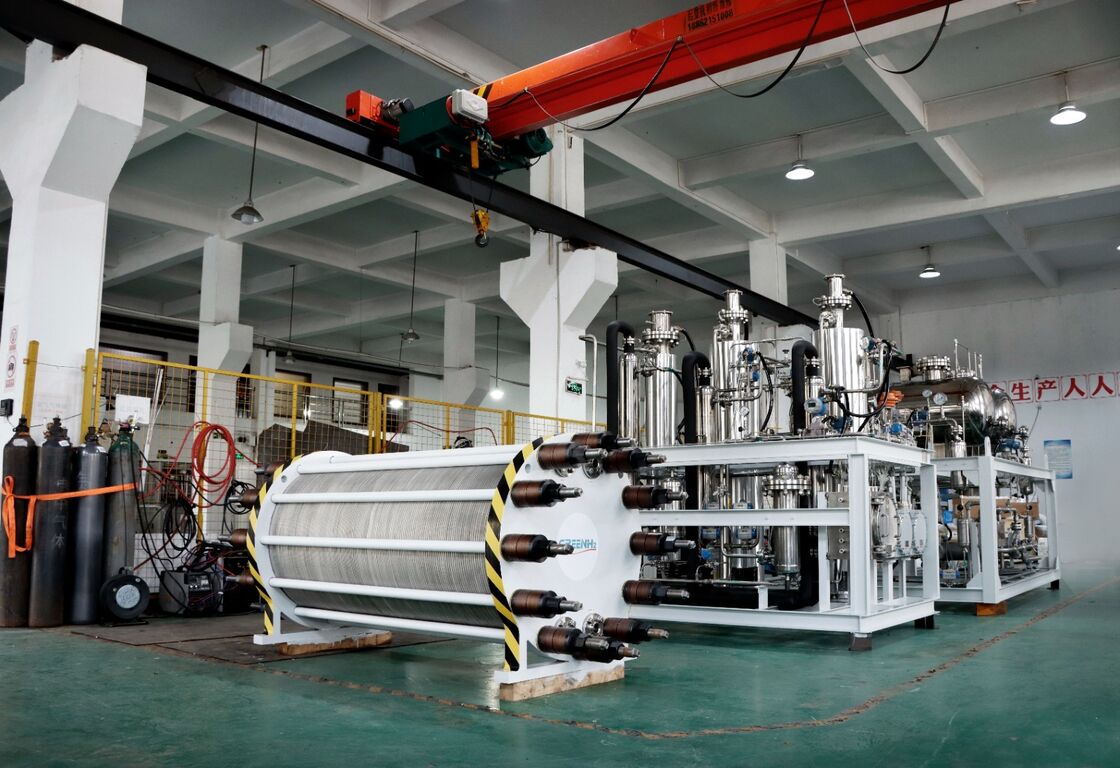

Alkaline Electrolyzer Hydrogen Generator

Reliable, Cost-Effective Large-Scale Hydrogen Production

Our Alkaline Water Electrolyzer (AEL) is a proven and mature hydrogen production technology, widely used in industrial applications. It offers stable operation, long lifespan, and cost-effective hydrogen generation, making it ideal for continuous, large-scale production.

Key Features

Proven Industrial Technology
Lower Capital Investment (CAPEX)
Long Service Life (10-15 years)
Stable Continuous Operation
High Reliability for Large Projects
Scalable for Industrial Hydrogen Demand

Technical Specifications

Parameter	Specification
Capacity Range	2 - 1300 Nm³/hr
Hydrogen Purity	99.7% - 99.999%
Output Pressure	Up to 30 bar
Power Consumption	4.2 - 5.2 kWh/Nm³
Electrolyte	KOH (Potassium Hydroxide)
Operation Mode	Continuous

Applications

Ammonia & Chemical Industry
Oil Refineries & Petrochemicals
Metal Processing & Heat Treatment
Industrial Hydrogen Supply
Energy Storage & Grid Balancing

Containerized Hydrogen Production System

Turnkey, Plug-and-Play Green Hydrogen Solution

Our Containerized Hydrogen Production System is a fully integrated, skid-mounted solution that includes:

Water Electrolyzer (PEM or Alkaline)
Hydrogen Purification System
Compression & Storage (optional)
PLC Control System

All components are installed inside a standard ISO container, providing a plug-and-play hydrogen generation solution for fast deployment.

Key Features

Turnkey Solution (Plug & Play)
Fast Installation & Commissioning
Compact & Mobile Design
Factory Pre-Tested System
Remote Monitoring & Automation (PLC/SCADA)
Customizable Configurations

Technical Specifications

Parameter	Specification
Capacity Range	1 - 1000 Nm³/hr
Hydrogen Purity	Up to 99.999%
Output Pressure	Up to 30-40 bar
Power Supply	Grid / Solar / Hybrid
Installation	Outdoor / Remote Sites
Container Type	20ft / 40ft ISO

Applications

Remote & Off-Grid Hydrogen Production
Hydrogen Refueling Stations
Renewable Energy Projects (Solar/Wind)
Backup Power Systems
Demonstration & Pilot Projects

Advantages of Containerized System

Minimal Civil Work Required
Reduced Installation Time (Plug & Operate)
Easy Transportation & Relocation
Lower Project Risk & Faster ROI
Ideal for Modular Expansion

Our Hydrogen Solutions Advantage

As a leading hydrogen technology provider, we offer:

Complete Hydrogen Production, Storage & Fuel Cell Solutions
Strong expertise in business development & technical services
Customized system design for industrial and energy applications
Global project experience and support
Commitment to green energy and sustainability

Complete Hydrogen Ecosystem

We don't just supply equipment—we deliver end-to-end hydrogen solutions, including:

Hydrogen Generation
Hydrogen Storage Systems
Hydrogen Fuel Cells
Integrated Energy Solutions
